Orbea Carpe

$4,699.00 CAD

Model: Carpe 10

Size: Small

Orbea Carpe Size Guide & Geometry Chart

The Carpe 10, Carpe 20 and Carpe 25 share the same frame, so one size chart and one geometry chart cover all three models.

Step 1

Frame size by rider height

CMIN

Orbea Carpe frame size by rider height
Frame size	Rider height	Feet & inches
SSmall	153 to 172 cm60.2" to 67.7"	5'0" to 5'8"
MMedium	164 to 183 cm64.6" to 72.0"	5'5" to 6'0"
LLarge	176 to 195 cm69.3" to 76.8"	5'9" to 6'5"
XLX-Large	187 to 206 cm73.6" to 81.1"	6'2" to 6'9"

Height ranges overlap between sizes. In the overlap, choose the smaller size for a more upright, nimble feel or the larger size for a more stretched-out ride.

Step 2

Frame geometry

MMIN

Orbea Carpe frame geometry by size
Measurement	S	M	L	XL
Top tube (horizontal)	55421.8	58122.9	60723.9	63625.0
Reach	40015.7	41616.4	43317.0	45117.8
Stack	56222.1	59223.3	62224.5	65325.7
Standover height	65125.6	65925.9	67426.5	68727.0
Seat tube length	40515.9	45517.9	47018.5	52020.5
Head tube length	1395.5	1696.7	1997.8	2299.0
Head tube angle	69.0°	69.5°	70.0°	70.5°
Seat tube angle	74.2°	74.2°	74.2°	74.0°
Chainstay length	42016.5	42016.5	42016.5	42016.5
Wheelbase	105741.6	107942.5	110143.3	112544.3
Bottom bracket drop	702.8	702.8	702.8	702.8
Fork length	41016.1	41016.1	41016.1	41016.1
Fork offset (rake)	461.8	461.8	461.8	461.8

Lengths in millimetres (MM) or inches (IN); angles in degrees. 700c wheels on all sizes.

Between sizes or not sure?

Book a free fitting consultation by phone, video or at our Ottawa & Gatineau Experience Centre, and a Scooteretti e-bike specialist will confirm the right Carpe size for you.

Call 613-244-0000

Color: Diamond Black Matt

Pre-Order Now, Ships in 10-14 Days

Quantity:

Description

The Orbea Carpe is a lightweight electric city bike series built for Canadians who want a real commuter e-bike without hauling around a 25 kg machine. Every Carpe shares the same proven core: a custom-tuned Shimano EP6 mid-drive motor with 85 Nm of torque, a 420 Wh battery hidden inside a closed downtube, Shimano MT200 hydraulic disc brakes, a carbon fork and pedal assist up to 32 km/h. Every Carpe is also certified to the UL 2849 safety standard for e-bikes. With reported weights between 17.7 and 20.9 kg depending on the model, the Carpe is light enough to carry up the steps of a walk-up, lift onto a car rack or roll into a condo elevator.

Because the Shimano EP6 is a mid-drive motor, it measures how hard you pedal and delivers power through the cranks, so steep bridge approaches, Prairie headwinds and loaded grocery runs feel close to flat ground. Orbea's Urban Active Geometry keeps you upright with a clear view over traffic, while the Twin Glide Flex double seat tube and carbon fork soak up potholes, streetcar tracks and spring frost heaves. A trapeze frame makes it easy to step over, and four frame sizes fit riders from 5'0" to 6'9".

Orbea Carpe 10: the low-maintenance commuter. The Carpe 10 pairs a Gates CDX belt drive with a Shimano Nexus 5-speed Di2 internal hub. There's no chain to clean or lube, Auto Mode shifts for you, and the sealed drivetrain shrugs off slush and road salt, which makes it the strongest choice for year-round riding. It ships fully equipped, including the rotating space-saving stem, folding pedals and an ABUS frame lock.

Orbea Carpe 20: the fully equipped everyday e-bike. The Carpe 20 keeps the Carpe 10's complete commuter kit but uses a Shimano CUES 9-speed chain drivetrain with a wide 11-46t cassette, rated for up to 98 km per charge. It comes ready to ride with a 20 kg-rated rear rack, alloy fenders, a 235-lumen Supernova Mini 2 headlight, a taillight integrated into the seatpost, daytime running lights, an SP Connect phone mount and a USB-C port. Its standard chain parts can be serviced at almost any bike shop in Canada.

Orbea Carpe 25: the lightest Carpe. The Carpe 25 uses the same motor, battery and 9-speed drivetrain as the Carpe 20, but ships without the rack, fenders and headlight, bringing its reported weight down to 17.7 kg. Pirelli Cinturato All Road tires add grip on gravel paths and rough city streets. It suits riders who travel light or already own the accessories they like.

Whichever model you choose, the Carpe grows with you. Orbea's 252 Wh Range Extender mounts on the bottle cage to raise total capacity to 672 Wh for long days, and accessory options include a 30 kg-rated RR-02 rear rack, a 10 kg front carrier and trailer compatibility. That combination of a branded mid-drive, hydraulic brakes, a sub-21 kg weight and real upgrade paths is what separates the Carpe from heavier, hub-motor commuter e-bikes that look similar on paper.

Shipping

FREE shipping within Canada on all our electric bikes.
Each electric bike is meticulously assembled, tested and packed by our electric bike experts.
Each electric bike is shipped 95% assembled.
All ebikes are shipped in accordance to Transport Canada regulations. Our shippers are fully trained and certified.

*Note: Unfortunately, we may not be able to ship to all regions.

Orbea Carpe

$4,699.00 CAD

85Nm

Of Torque

98 Km's

Range Between Charges

350%

Pedal Assist

See The Orbea Carpe In Action

Ideal For:

The Orbea Carpe is ideal for city and suburban riders whose week looks like a 5 to 20 km commute, a grocery stop on the way home and a weekend ride along a waterfront or river path. It's built for the realities of riding in Canada, whether that means Toronto bike lanes, Montreal's long winters, Calgary's Prairie headwinds, Vancouver rain or the daily cross-river trip between Ottawa and Gatineau. If you live in a condo, apartment or walk-up and need a bike you can actually lift, carry and store, the Carpe's sub-21 kg weight and optional space-saving stem make it one of the most practical fully featured e-bikes available.

Choosing between the three models comes down to how you ride. Pick the Carpe 10 if you ride through every season and never want to clean or adjust a chain, since its belt drive and sealed internal hub are made for slush, salt and grit. Pick the Carpe 20 if you want a fully equipped commuter e-bike you can ride to work the day it arrives, with lights, fenders and a rack already installed and a drivetrain any shop can service. Pick the Carpe 25 if you want the lightest, most nimble Carpe, ride mostly in fair weather or already own your accessories.

24

Month Electronics Warranty

Lifetime

Frame Warranty

Shimano EP6

The Shimano EP6 is a mid-drive motor with 85 Nm of torque, the same maximum torque as Shimano’s flagship EP8, custom-tuned by Orbea for city riding. Because it sits at the cranks and senses how hard you pedal, power comes in smoothly from a standing start at a red light and builds as you climb, so bridge approaches, headwinds and a loaded rear rack feel close to flat ground.

Pedal assist runs up to 32 km/h, and Walk Assist helps you push the bike up ramps and out of parking garages. You can fine-tune how the motor responds in each assist mode with Shimano’s E-TUBE PROJECT app, and on the Carpe 10 the EP6 pairs with the Shimano Nexus Di2 internal hub for automatic shifting, so you’re always in the right gear when you pull away.

Shimano EN500

The Shimano EN500 is a compact, all-in-one display and assist switch in one small handlebar unit, so you can change assist modes without taking your hand off the bar. Its 1.4-inch LCD shows your assist level, estimated remaining range, trip distance and total odometer, plus your current gear and Auto mode on the Carpe 10’s Di2 drivetrain, and the same button switches your lights on and off.

At about 40 g, it keeps the cockpit clean and uncluttered. On the Carpe 10 and 20, pair it with the integrated SP Connect phone mount for navigation and ride tracking on your phone, or upgrade to Shimano’s larger EN600 cycle computer, which Orbea offers as an option.

Orbea 420 Wh Lithium Battery

The Orbea 420 Wh integrated battery gives every Carpe up to 98 km of range per charge, enough for most riders to cover several days of city commuting before plugging in. It's built permanently into the downtube, fully enclosed and protected from rain, slush and road grime, and keeps the bike's weight low and centred for stable, predictable handling. Charging is simple: plug the charger straight into the bike's charging port, wherever you park it. The complete Carpe electrical system, battery included, is certified to UL 2849, the North American safety standard for e-bikes, so you can charge and store it at home with confidence.

Orbea's second-generation smart charger monitors the battery's condition as it charges to help protect its long-term health. Need more range for a big day out? Add Orbea's optional 252 Wh Range Extender to the bottle cage mount and total capacity climbs to 672 Wh. A USB-C port also lets you top up your phone or lights on the go.

Shimano EP6

The Shimano EP6 is a mid-drive motor with 85 Nm of torque, the same maximum torque as Shimano’s flagship EP8, custom-tuned by Orbea for city riding. Because it sits at the cranks and senses how hard you pedal, power comes in smoothly from a standing start at a red light and builds as you climb, so bridge approaches, headwinds and a loaded rear rack feel close to flat ground.

Pedal assist runs up to 32 km/h, and Walk Assist helps you push the bike up ramps and out of parking garages. You can fine-tune how the motor responds in each assist mode with Shimano’s E-TUBE PROJECT app, and on the Carpe 10 the EP6 pairs with the Shimano Nexus Di2 internal hub for automatic shifting, so you’re always in the right gear when you pull away.

Shimano EN500

The Shimano EN500 is a compact, all-in-one display and assist switch in one small handlebar unit, so you can change assist modes without taking your hand off the bar. Its 1.4-inch LCD shows your assist level, estimated remaining range, trip distance and total odometer, plus your current gear and Auto mode on the Carpe 10’s Di2 drivetrain, and the same button switches your lights on and off.

At about 40 g, it keeps the cockpit clean and uncluttered. On the Carpe 10 and 20, pair it with the integrated SP Connect phone mount for navigation and ride tracking on your phone, or upgrade to Shimano’s larger EN600 cycle computer, which Orbea offers as an option.

Orbea 420 Wh Lithium Battery

The Orbea 420 Wh integrated battery gives every Carpe up to 98 km of range per charge, enough for most riders to cover several days of city commuting before plugging in. It's built permanently into the downtube, fully enclosed and protected from rain, slush and road grime, and keeps the bike's weight low and centred for stable, predictable handling. Charging is simple: plug the charger straight into the bike's charging port, wherever you park it. The complete Carpe electrical system, battery included, is certified to UL 2849, the North American safety standard for e-bikes, so you can charge and store it at home with confidence.

Orbea's second-generation smart charger monitors the battery's condition as it charges to help protect its long-term health. Need more range for a big day out? Add Orbea's optional 252 Wh Range Extender to the bottle cage mount and total capacity climbs to 672 Wh. A USB-C port also lets you top up your phone or lights on the go.

Technical Specifications

Orbea Carpe

Model

Carpe 10

Carpe 20

Carpe 25

Frame

Orbea Carpe 2026, Hydroformed Alloy 6061, OLD 135x9 / OLD 142x12, Headset Standard HS01, Orbea cockpit and equipment ecosystem, w/ Kickstand, Trailer compatible.

Fork / Shock

Orbea Carpe carbon

Wheel Size / Tires

Alloy, 25c, 32H / Vittoria Randonneur 42-622, Reflective band

Alloy, 26c, 32H / Vittoria Randonneur 42-622, Reflective band

Alloy, 26c, 32H / Pirelli Cinturato™ All Road Classic 700x45c TLR

Brakes

Shimano MT200 Hydraulic Disc

Speeds

5 Speed

9 Speed

Rear Derailleur / Internal Hub

Shimano Internal Gear Hub UR510 Di2 5 speeds

Shimano Cues U4000 GS Shadow

Optional Accessories For The Orbea Carpe

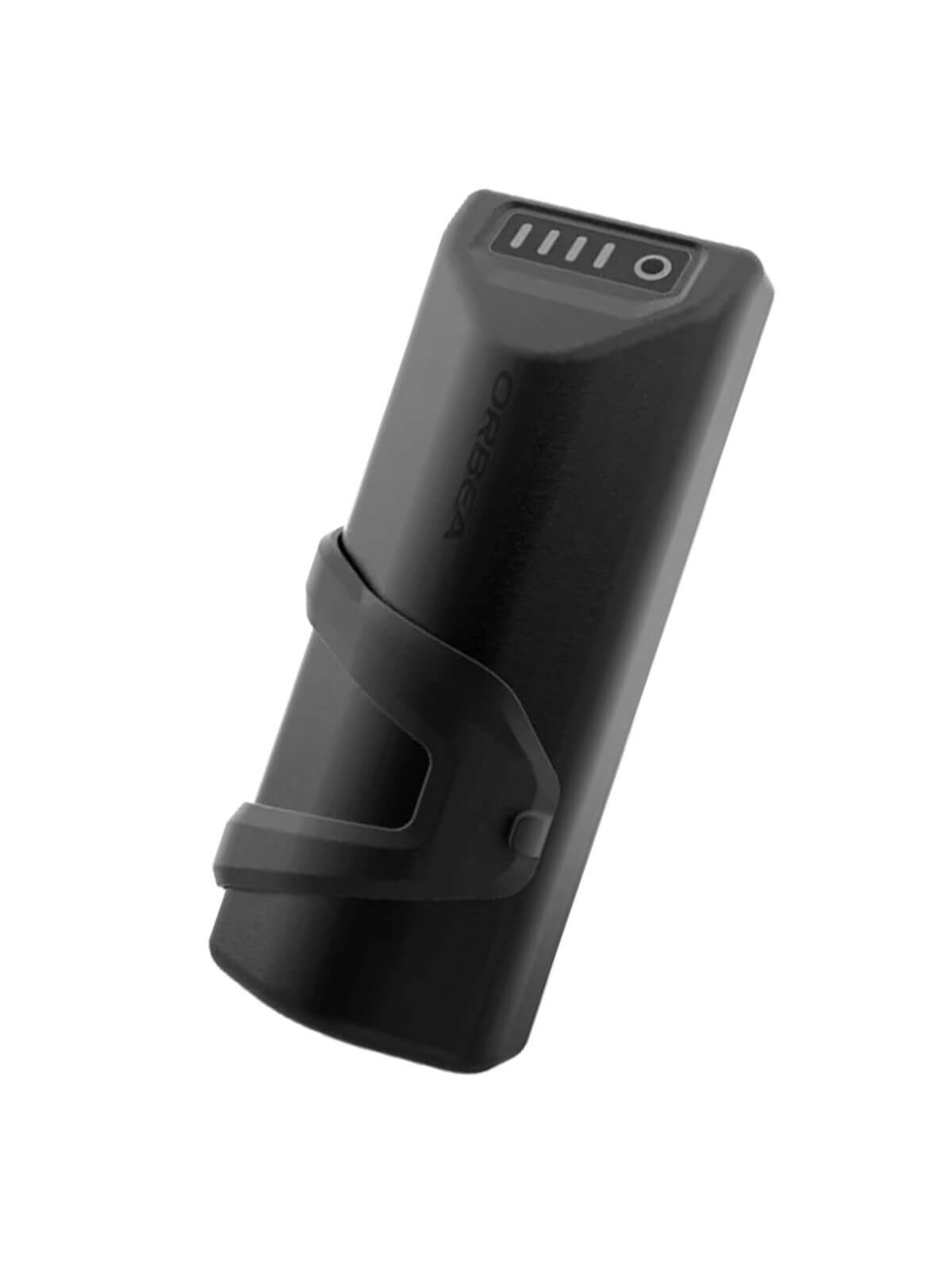

Orbea Custom Range Extender (252 Wh)

A bottle-sized second battery that mounts on the Carpe’s bottle cage mount and plugs into the bike to add 252 Wh, bringing total capacity to 672 Wh for long rides, big errand days or cold-weather commutes when range drops. Clip it on only when you need it and leave it at home the rest of the time to keep the bike light. Includes the power cable and bike mount.

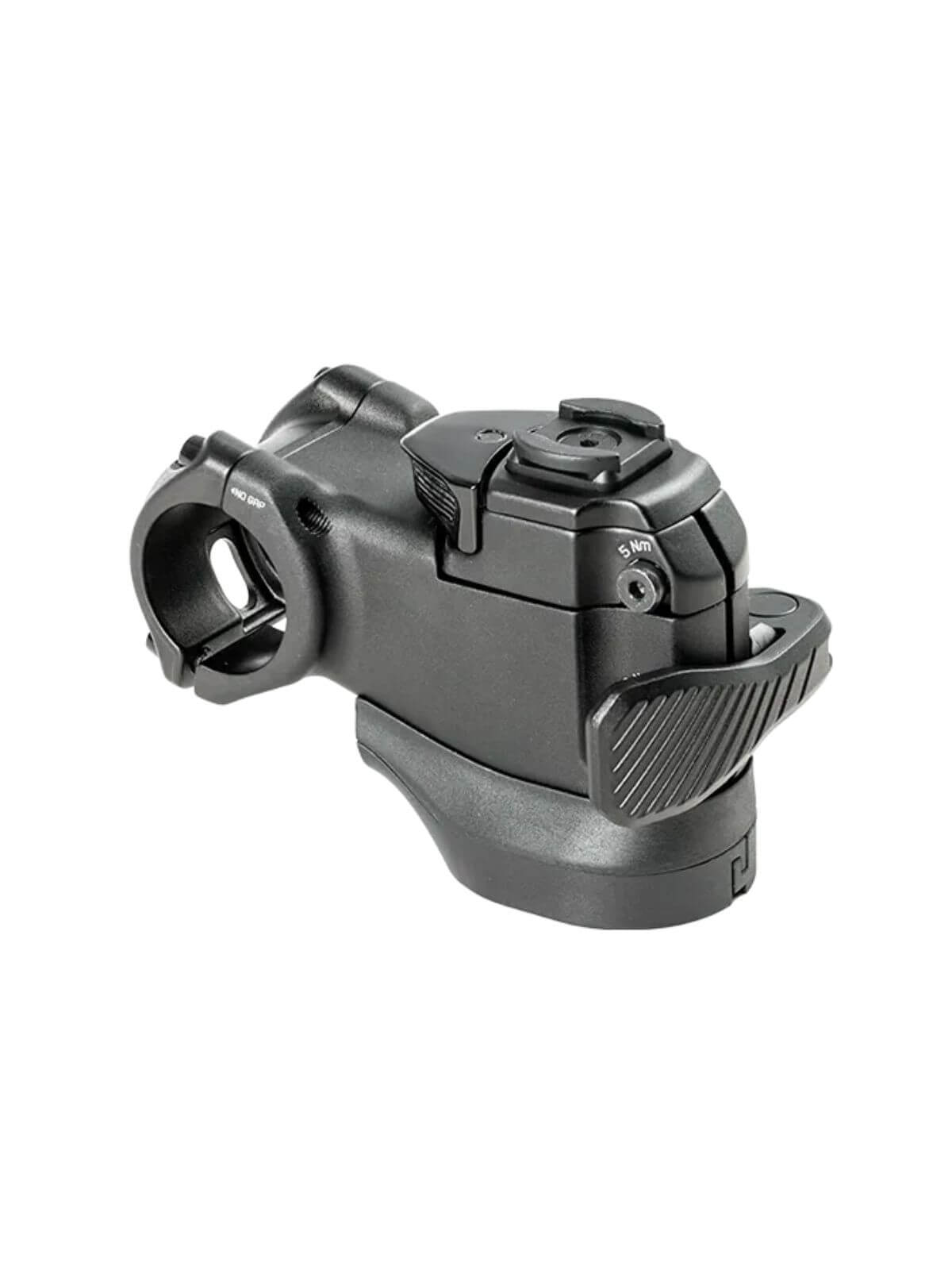

Orbea ST 0.1 Foldable Stem (65 mm, +15°)

Rotate the handlebar flat in seconds so your Carpe slips into a narrow hallway, condo storage room or car trunk. It stays rigid and secure while you ride, and the 65 mm length and +15° rise keep the Carpe’s upright, comfortable position. Standard on the Carpe 10, optional on the Carpe 20 and 25.

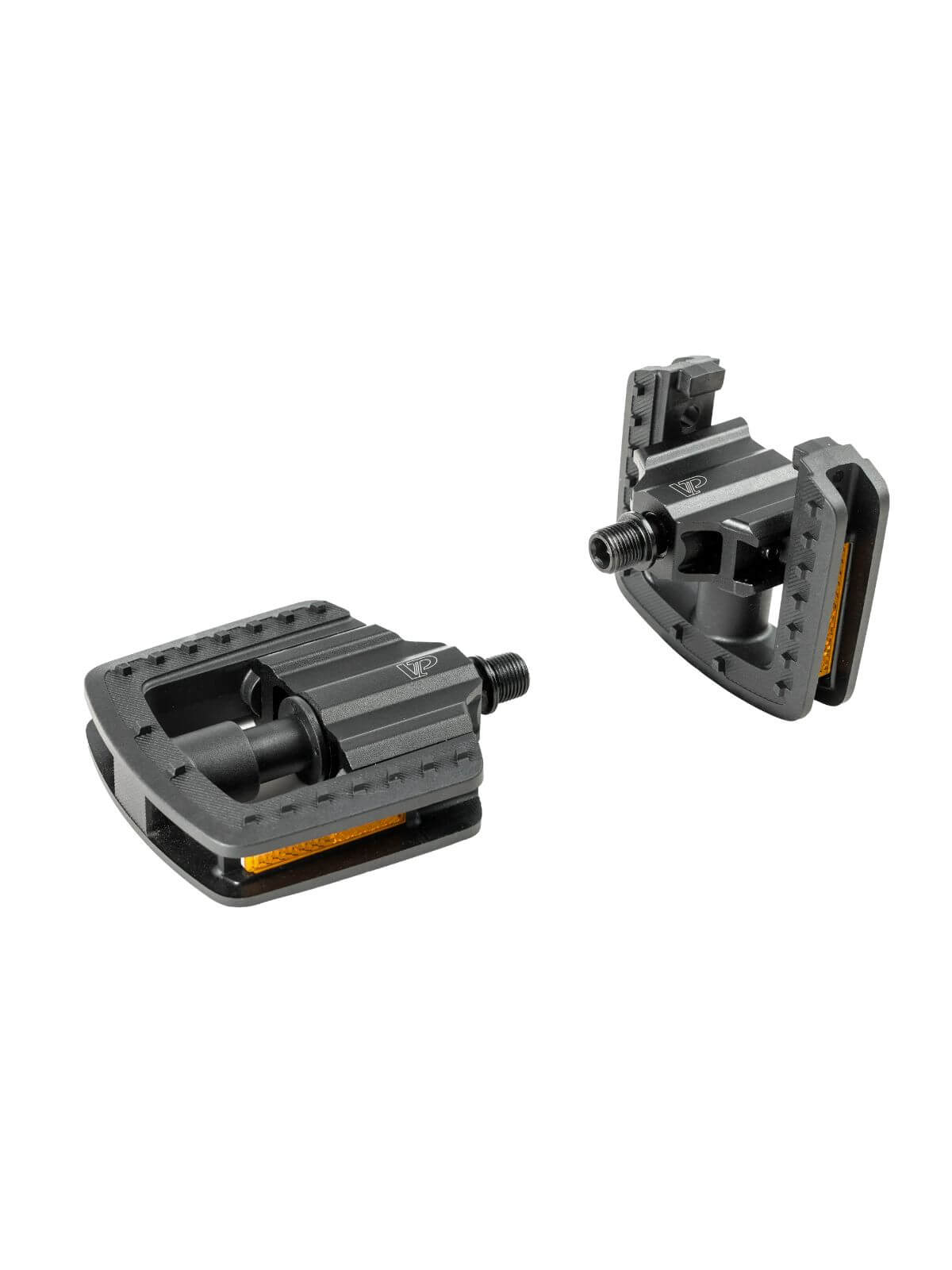

VP-F57 Foldable Pedals

Folding pedals that tuck in flat against the crank, so the bike takes up less space and won’t snag a wall or a neighbour’s bike when parked. A non-slip surface keeps your shoes planted in wet weather, and built-in reflectors add visibility after dark. Black, 113.5 × 100.5 mm, 522 g. Standard on the Carpe 10, optional on the Carpe 20 and 25.

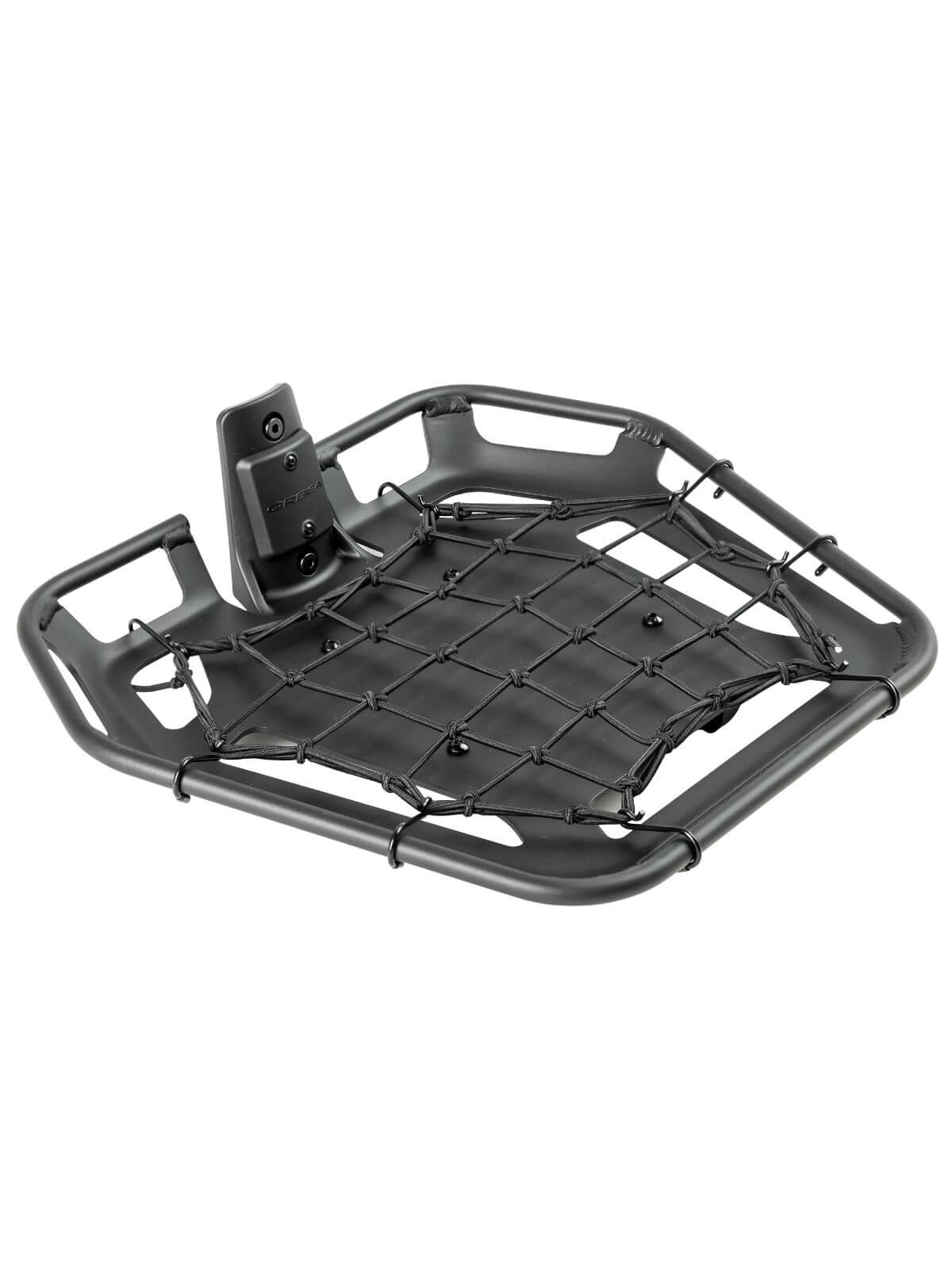

Orbea RF-01 Front Carrier with Aluminium Basket and Net

An alloy front rack with an aluminium basket and stretch net, made for groceries, a work bag or a takeout order you want to keep in sight. The net holds everything in place over bumps, and the 10 kg rating covers most everyday errands.

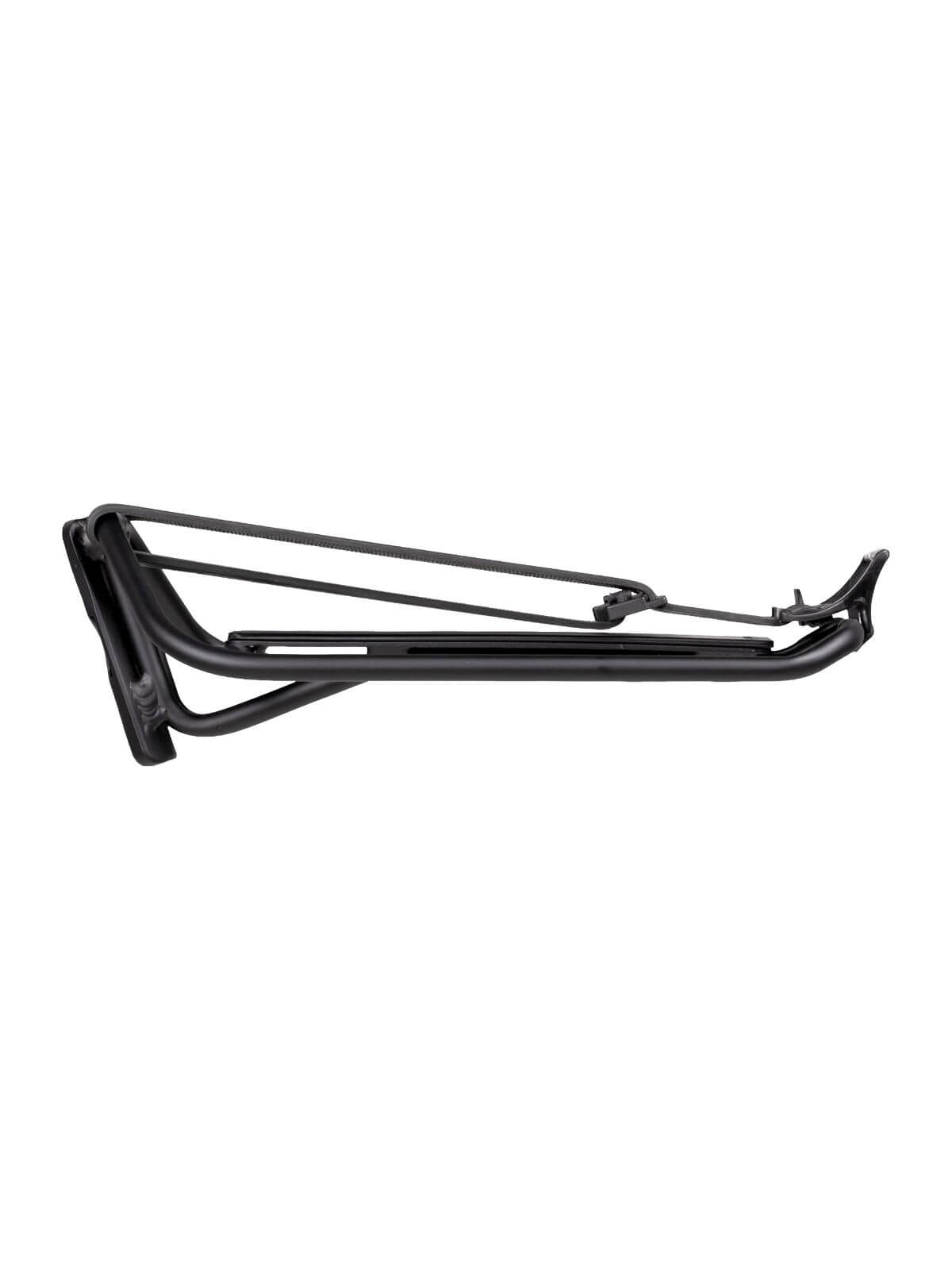

Orbea RR-02 MIK HD & Ortlieb QL3.1 System

Orbea RR-02 Rear Rack

A compact, heavy-duty alloy rack that raises the Carpe’s carrying capacity to 30 kg for big grocery runs, fully loaded panniers or a rear child seat. It takes standard pannier hooks as well as Ortlieb QL3.1, MIK and MIK HD click-on systems, so bags, baskets and MIK HD child seats lock on and off in seconds. Platform: 342 × 116 mm.

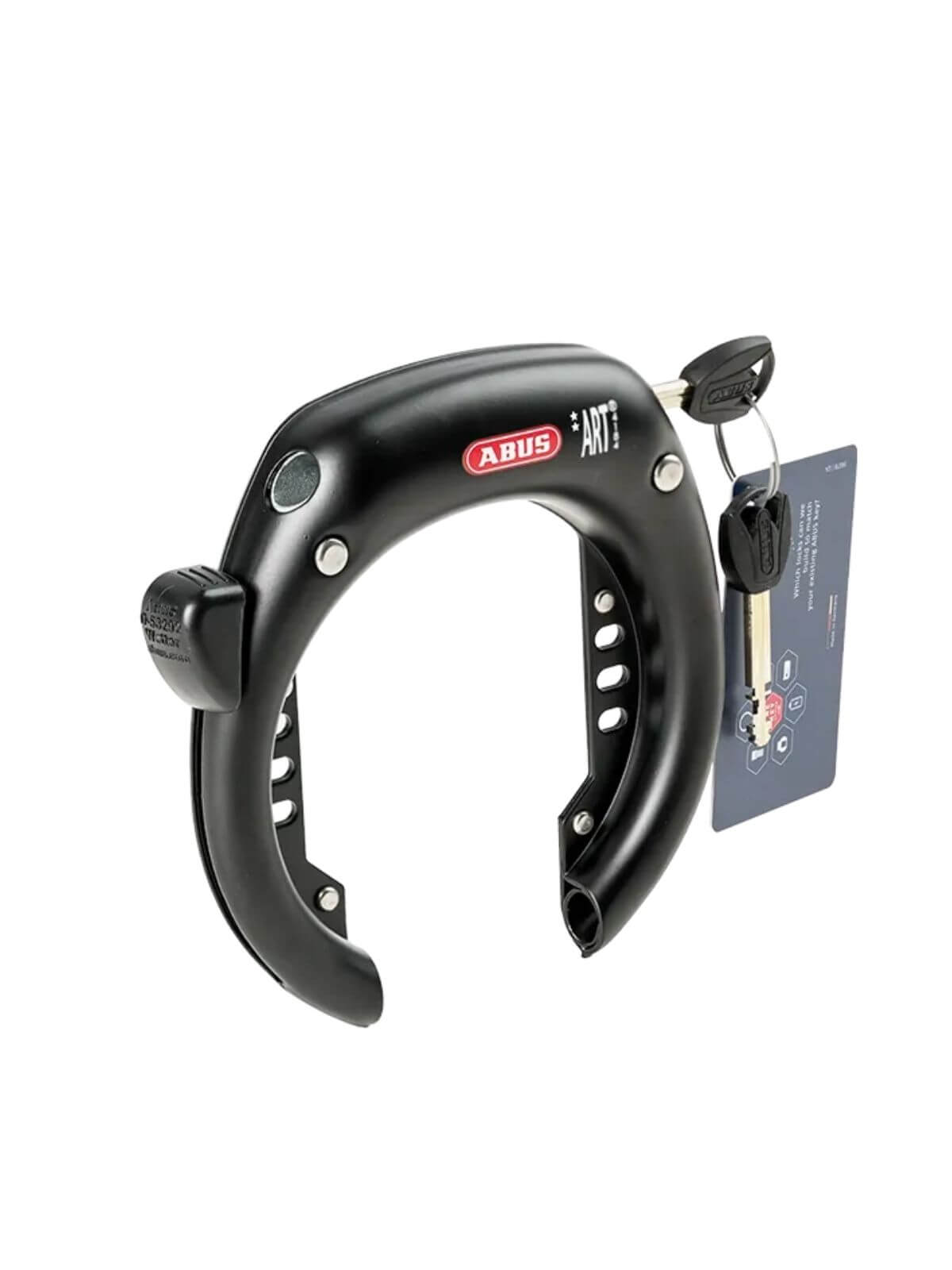

ABUS SHIELD XPlus 5755L Frame Lock

A frame-mounted wheel lock that locks the rear wheel in one motion for quick stops, built from hardened steel with ABUS’s tamper-resistant XPlus cylinder. Choose the NR version if you want to remove the key while the lock is open, or the R ART version for ART certification (the Dutch independent anti-theft rating), with the key staying in the lock while it’s open. Standard on the Carpe 10, optional on the Carpe 20 and 25.

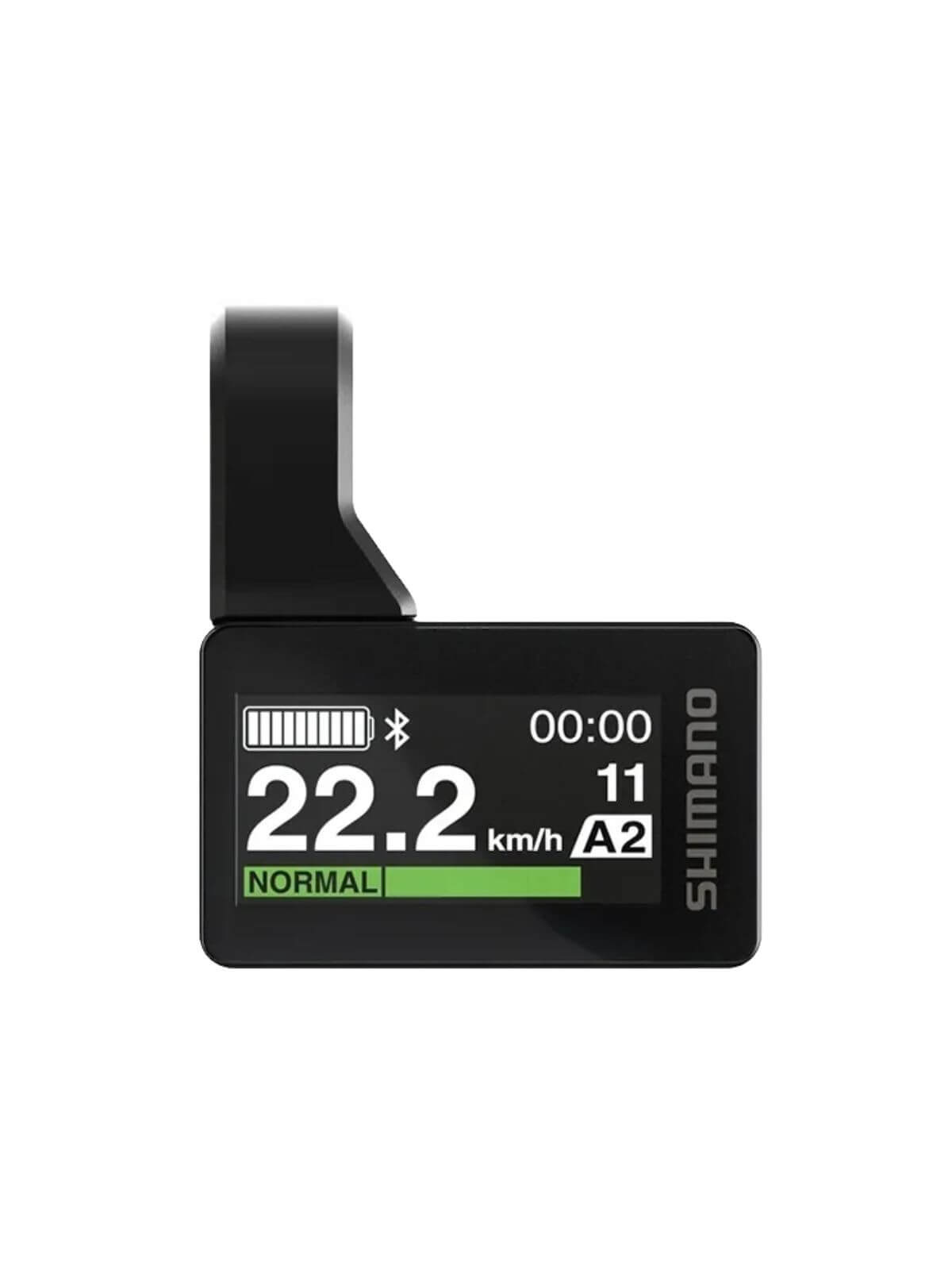

Shimano EN600 Colour Display

An upgrade from the standard EN500: a 4.06 cm (1.6 in) colour screen that shows your key ride data at a glance and mounts on either the stem or the handlebar. Choose which data appears with Shimano’s E-TUBE PROJECT Cyclist app. Weight: 37 g.

Orbea Custom Range Extender (252 Wh)

A bottle-sized second battery that mounts on the Carpe’s bottle cage mount and plugs into the bike to add 252 Wh, bringing total capacity to 672 Wh for long rides, big errand days or cold-weather commutes when range drops. Clip it on only when you need it and leave it at home the rest of the time to keep the bike light. Includes the power cable and bike mount.

Orbea ST 0.1 Foldable Stem (65 mm, +15°)

Rotate the handlebar flat in seconds so your Carpe slips into a narrow hallway, condo storage room or car trunk. It stays rigid and secure while you ride, and the 65 mm length and +15° rise keep the Carpe’s upright, comfortable position. Standard on the Carpe 10, optional on the Carpe 20 and 25.

VP-F57 Foldable Pedals

Folding pedals that tuck in flat against the crank, so the bike takes up less space and won’t snag a wall or a neighbour’s bike when parked. A non-slip surface keeps your shoes planted in wet weather, and built-in reflectors add visibility after dark. Black, 113.5 × 100.5 mm, 522 g. Standard on the Carpe 10, optional on the Carpe 20 and 25.

Orbea RF-01 Front Carrier with Aluminium Basket and Net

An alloy front rack with an aluminium basket and stretch net, made for groceries, a work bag or a takeout order you want to keep in sight. The net holds everything in place over bumps, and the 10 kg rating covers most everyday errands.

Orbea RR-02 Rear Rack

A compact, heavy-duty alloy rack that raises the Carpe’s carrying capacity to 30 kg for big grocery runs, fully loaded panniers or a rear child seat. It takes standard pannier hooks as well as Ortlieb QL3.1, MIK and MIK HD click-on systems, so bags, baskets and MIK HD child seats lock on and off in seconds. Platform: 342 × 116 mm.

ABUS SHIELD XPlus 5755L Frame Lock

A frame-mounted wheel lock that locks the rear wheel in one motion for quick stops, built from hardened steel with ABUS’s tamper-resistant XPlus cylinder. Choose the NR version if you want to remove the key while the lock is open, or the R ART version for ART certification (the Dutch independent anti-theft rating), with the key staying in the lock while it’s open. Standard on the Carpe 10, optional on the Carpe 20 and 25.

Shimano EN600 Colour Display

An upgrade from the standard EN500: a 4.06 cm (1.6 in) colour screen that shows your key ride data at a glance and mounts on either the stem or the handlebar. Choose which data appears with Shimano’s E-TUBE PROJECT Cyclist app. Weight: 37 g.

Frequently Asked Questions

Contact Us Now

Which Orbea Carpe should I choose: the Carpe 10, 20 or 25?

Choose the Carpe 10 for the lowest-maintenance drivetrain, the Carpe 20 for a fully equipped commuter with a conventional 9-speed chain, and the Carpe 25 for the lightest bike if you plan to add your own accessories. All three share the same 85 Nm Shimano EP6 motor, 420 Wh battery, Shimano MT200 hydraulic disc brakes and lightweight alloy frame. The real differences are the drivetrain (Gates belt with a Nexus Di2 internal hub on the 10, Shimano CUES 9-speed chain on the 20 and 25) and how much equipment comes installed.

Is the Orbea Carpe an electric bike?

I

Yes, the current Orbea Carpe 10, Carpe 20 and Carpe 25 are all electric city bikes powered by a Shimano EP6 mid-drive motor and a 420 Wh integrated battery. Orbea previously sold a non-electric hybrid under the Carpe name, so if you see an older Carpe listed without a motor or battery, that's the earlier acoustic model, not this e-bike series.

Is the Orbea Carpe a good commuter e-bike compared with cheaper options?

Yes, the Orbea Carpe is one of the strongest lightweight commuter e-bikes in its class because it combines a branded mid-drive motor, hydraulic disc brakes and a weight under 21 kg. Many lower-cost commuter e-bikes use rear hub motors, mechanical brakes and frames well over 25 kg, which feel less natural on climbs and are much harder to carry. On the Carpe 10 and 20, the rack, fenders, Supernova lights and phone mount are already included, so there's less to add after purchase.

Is the belt-drive Orbea Carpe 10 worth the step up from the Carpe 20?

The Carpe 10 is worth it if you ride year-round or want the least maintenance possible, because its Gates CDX belt and sealed Shimano Nexus Di2 internal hub don't need lubing and resist slush and road salt. Auto Mode shifts gears for you, and the space-saving stem, folding pedals and ABUS frame lock are included. If you mostly ride from spring to fall and are comfortable with basic chain care, the Carpe 20's 9-speed drivetrain offers a wider gear range and parts that almost any bike shop stocks.

How far can the Orbea Carpe go on a charge?

The Orbea Carpe is rated for up to 98 km on a single charge of its 420 Wh integrated battery, and Orbea's optional 252 Wh Range Extender raises total capacity to 672 Wh. Real-world range depends on assist level, rider weight, cargo, hills, wind and temperature, and like any e-bike, range drops in cold weather.

Can I ride the Orbea Carpe in a Canadian winter?

Yes, the Orbea Carpe can handle cold, wet and slushy commutes, and the belt-drive Carpe 10 is the best model for riding through the winter. All three have Shimano MT200 hydraulic disc brakes that stay consistent in wet conditions, and the Carpe 10 and 20 add full fenders and integrated lights for short winter days. Because the battery is built into the frame, charge and store the whole bike indoors at room temperature, rinse road salt off it regularly, and switch to studded tires if your route stays icy.

What size Orbea Carpe do I need?

The Orbea Carpe comes in four sizes: Small for riders about 5'0" to 5'8", Medium for 5'5" to 6'0", Large for 5'9" to 6'5", and XL for 6'2" to 6'9". If you fall where two sizes overlap, the smaller size usually feels more nimble and the larger one more stretched out. The low trapeze frame is easy to step over in any size, and a free fitting consultation can confirm the best fit before you buy.

Where can I buy and test ride the Orbea Carpe in Canada?

You can test ride all three Orbea Carpe models at Scooteretti's Ottawa & Gatineau Experience Centre at 100 Trainyards Drive in Ottawa, or order online with free shipping anywhere in Canada. Bikes ship about 95% assembled, so setup at home mostly means attaching the handlebar and pedals. Scooteretti has specialized exclusively in electric bikes since 2010, and its founder sits on the NBDA E-Bike Safety & Standards Panel, so you get expert sizing and model advice by phone, video or in store before you buy.
